High-Performance FRP Reaction Kettle for Chemical Industry Solutions
Jul . 24, 2025 13:01
Comprehensive Analysis and Industry Insights on FRP Reaction Kettle
Hebei Longxuan Environmental Protection Equipment Co., LTD.
| Global FRP Solution Provider
Company Phone:
+86 18631823130
Mobile:
+86 17631849152
Email:
longxuanfrp@gmail.com
Address:
20 Xingyuan South Street, Zaoqiang County, Hengshui City, Hebei Province, China
What is an FRP Reaction Kettle?
The FRP Reaction Kettle is an advanced, corrosion-resistant vessel designed using Fiber Reinforced Plastics (FRP) technology. With volumes ranging from 0.5 to 500 cubic meters, these kettles are engineered for industrial use in sectors such as chemicals, water treatment, pharmaceuticals, food & beverage, agriculture, and more.
- Material: Superior FRP with customizable resin matrix for application-specific resistance.
- Key Features: Lightweight, high mechanical strength, excellent anti-corrosive properties, customizable dimensions, long service life, low maintenance.
- Application Fields: Residential Water Supply, Fire Protection Water Storage, Pharmaceuticals, Chemical Processing, Food and Beverage Production, Agriculture, Water Treatment Plants, Rainwater Harvesting, Fountains and Landscape Systems, and more.

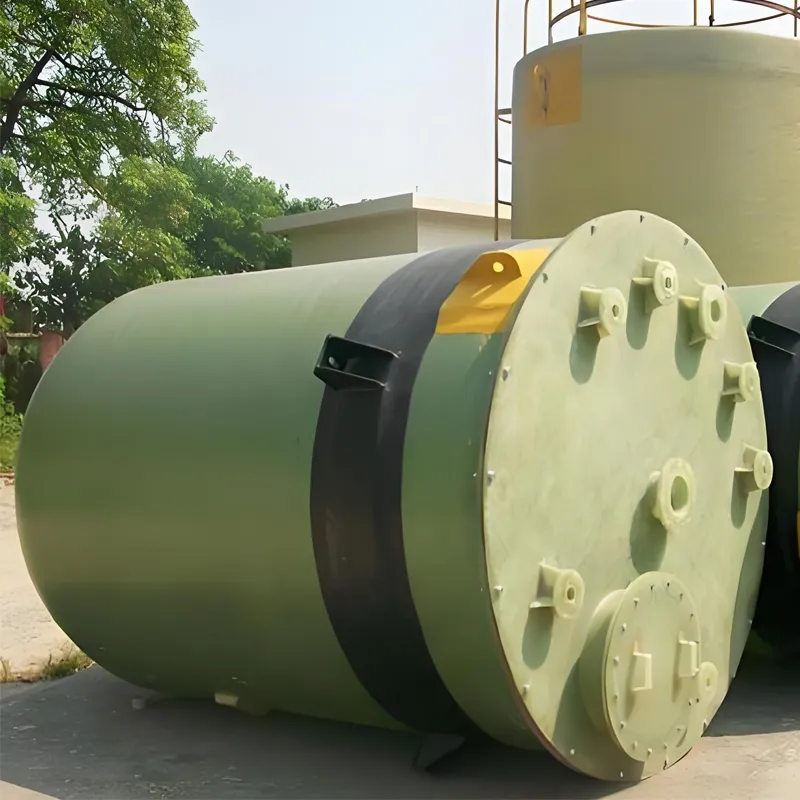

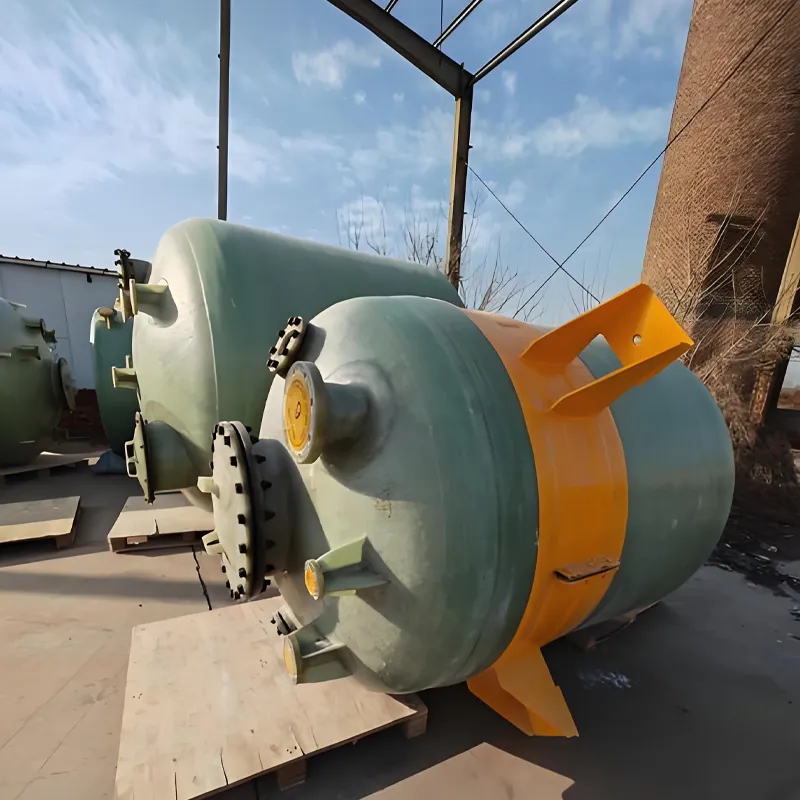

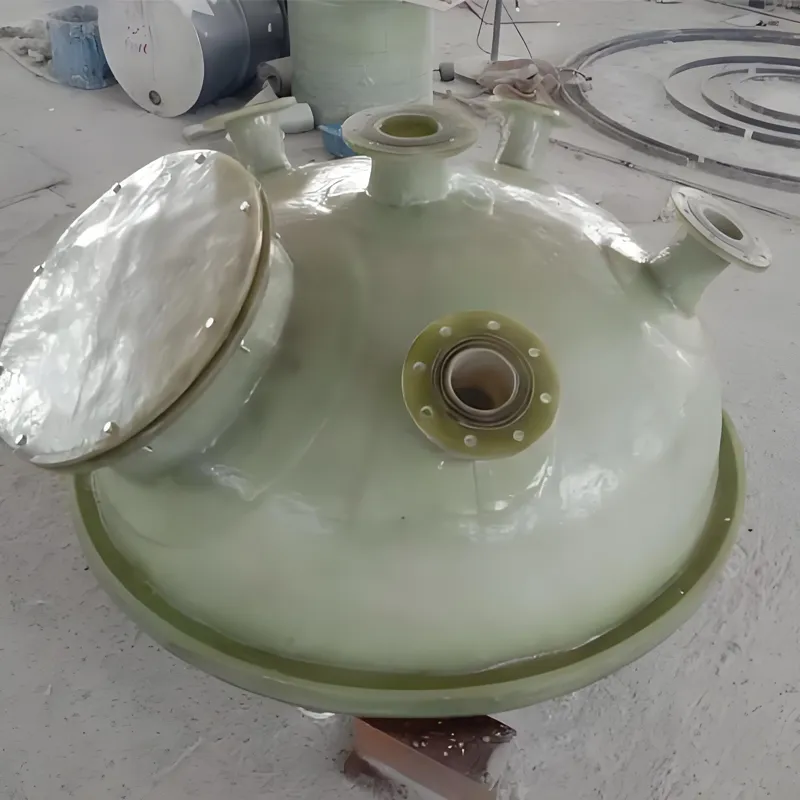

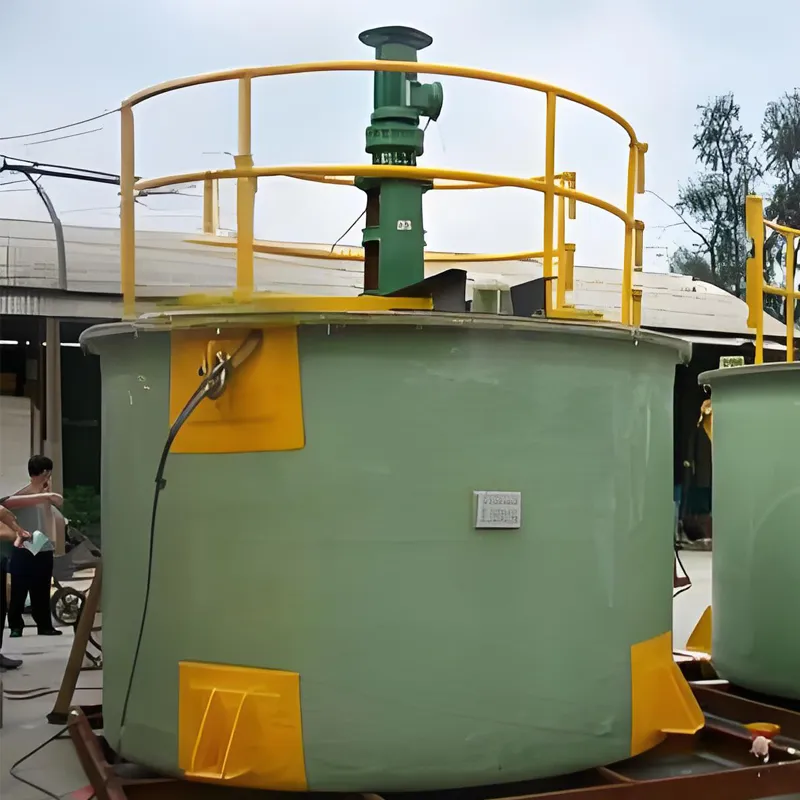

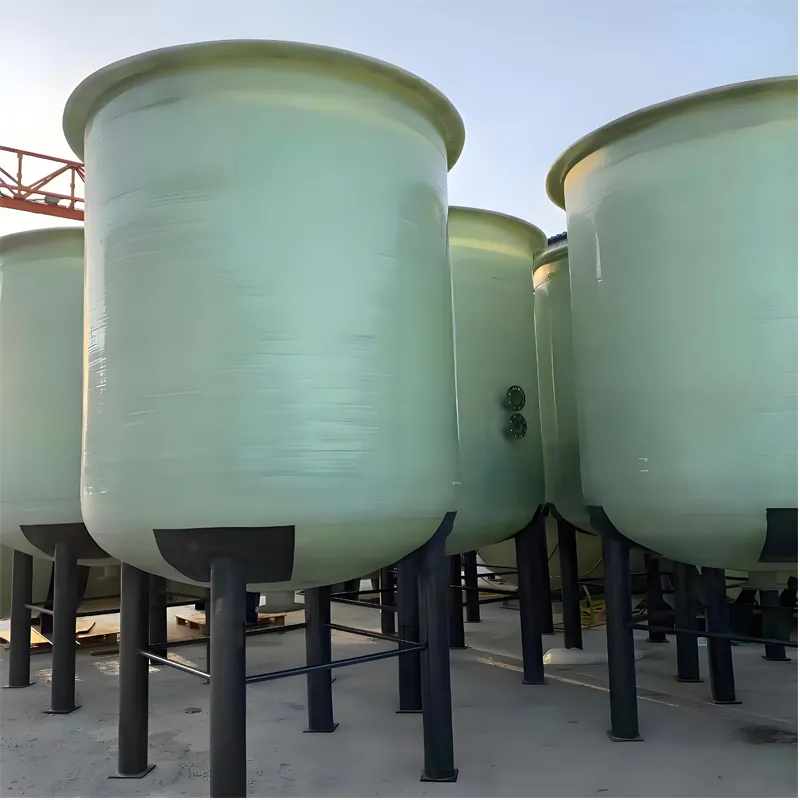

Image Gallery of FRP Reaction Kettle
Industry Trends—The Rising Demand of FRP Reaction Kettle
The usage of FRP Reaction Kettle has experienced a remarkable growth, driven by rapid industrialization, rising need for corrosion-resistant process equipment, and stricter environmental regulations.
According to CompositesWorld and industry research, the global demand for FRP storage and reaction vessels is set to grow at a CAGR of 6.4% till 2030. Key drivers include:
- Corrosion resistance: Traditional metal vessels suffer from corrosion and contamination, FRP ensures long-term purity & safety.
- Regulatory compliance: Increasing environmental and fire protection standards.
- Versatility: Adaptable to harsh chemicals, potable water, food-grade requirements, and high-pressure/temperature environments.
Technical Parameter Table of FRP Reaction Kettle
| Parameter | Standard Value | Custom Range | Description / Note |
|---|---|---|---|
| Volume | 5 m³ | 0.5–500 m³ | Adjustable per process requirements |
| Working Pressure | 0.6 MPa | 0.1 – 1.2 MPa | Design per media and safety needs |
| Design Temperature | 60°C | -40 – 140°C | Depends on resin and liner type |
| Liner Material | E-Glass + Vinylester Resin | E-Glass, C-Glass, Surface Veil, customized resin | Corrosion and permeability resistance |
| Wall Thickness | 8 mm | 6–32 mm | Based on working condition, diameter |
| Nozzle/Fittings | ISO/DIN flange, threaded | Customizable (SS, FRP, PVC, PP) | Ensures easy integration/interface |
| Paddle/Agitator | FRP-covered steel | Multiple shaft/impeller options | Process-specific, optional |
| Compliance Standards | HG/T 20696, GB150, ASME RTP-1 | GB, ASME, ISO, customized | Based on region/project |
Key Advantages of FRP Reaction Kettle
- Corrosion Resistance: FRP structures offer outstanding resistance to acids, alkalis, salts, and solvents, far outperforming carbon steel, stainless steel, and thermoplastics (MDPI: Polymers- FRP Comparison).
- Lightweight & High Strength: Up to 70% weight savings over steel tanks, simplifying logistics and hoisting.
- Custom Manufacture: Sizes, nozzles, linings, insulation, and internals all tailorable to your application.
- Hygienic/Non-Contaminating: Suitable for potable water and food-grade storage, certified by relevant international standards.
- Lifecycle Advantage: 20+ years of service with negligible maintenance under normal conditions.
Application Scenarios of FRP Reaction Kettle
- Chemical Manufacturing: Acid, base, brine, oxidative and solvent process storage and mixing.
- Water Treatment: Raw and treated water buffer, chlorine dosing tanks, backwash water storage.
- Fire Protection: Strategic reserve for industrial and municipal fire safety systems.
- Pharmaceuticals: Pure water storage, mixing vessels, batch reactors for API production.
- Food & Beverage: Syrup, beverage, dairy, wine, brewery storage and blending.
- Rainwater Harvesting & Agriculture: Rainwater seasoning, fertilizer mixing tanks, irrigation reservoirs.
- Landscape/Fountain: Sustainable and decorative water storage for parks, gardens, urban landscapes.
For detailed product specifications, download the official datasheet from
FRP Reaction Kettle
page.
About Hebei Longxuan Environmental Protection Equipment Co., LTD.
Hebei Longxuan Environmental Protection Equipment Co., LTD. stands at the forefront of the global FRP Reaction Kettle market, offering:
- Certified production (ISO9001, SGS, ASME RTP standards).
- 20+ years field experience, supplying over 5000 projects worldwide.
- Technical consultation, solution design, full customization, installation guidance and after-sales service.
- Prompt international logistics and flexible payment plans.
- Phone: +86 18631823130
- Mobile: +86 17631849152
- Email: longxuanfrp@gmail.com
- Address: 20 Xingyuan South Street, Zaoqiang County, Hengshui City, Hebei, China
Professional FAQ on FRP Reaction Kettle
1. What are the main materials used for an FRP Reaction Kettle liner?
Most commonly, high-purity E-glass reinforced with either vinylester or epoxy resin is used. Depending on end-use media, C-glass or specific resin formulations (e.g. bisphenol-A, novolac) may be selected for superior chemical resistance.
2. Which standards govern the design & manufacturing of FRP Reaction Kettle globally?
HG/T 20696, GB150 (China), ASME RTP-1 (USA), EN13121 (Europe) and ISO14692 are widely referenced. Longxuan produces to project and regional requirements.
3. Can FRP Reaction Kettle be used at high temperatures or pressures?
Yes. With advanced resins and design, continuous operation at up to 120°C and pressures up to 1.2MPa is feasible. Always specify process requirements for optimal engineering.
4. What types of agitation are available in FRP Reaction Kettle?
Paddle, turbine, anchor, and propeller types—fitted with FRP-jacketed steel or pure FRP shafts. Custom mixing configurations are designed per process.
5. How is quality assurance implemented for FRP Reaction Kettle?
Material traceability, destructive and non-destructive testing (hydrotest, ultrasound, peel & shear test), in-process QC per ISO9001. Full factory acceptance test (FAT) before shipment.
6. What installation precautions are needed for FRP Reaction Kettle?
Firm, level foundation; proper lift/hoisting, check for transportation damage; correct alignment with process piping; follow anti-static/earthing requirements where flammable media present.
7. What are the typical service life and warranty terms?
Typical service is 20+ years for standard media under advised conditions, with 1-5 years warranty depending on specification. Longxuan offers lifetime technical support.
Why Choose Hebei Longxuan FRP Reaction Kettle?
- Design Flexibility: Fully customized—diameter, volume, process ports, manholes, insulation or heating options.
- Leading Quality: In-house R&D, full batch traceability, third-party test certifications.
- Global Support: Engineering guidance, rapid shipment, on-site or remote installation assistance.
- Proven Track Record: Trusted by clients in petrochemical, power, mining, manufacturing, biotech and municipal sectors.
- Integrated FRP Solution: Also provide matching FRP Tanks, pipelines, stacks, gratings, scrubbers and more.
Conclusion: The Future of FRP Reaction Kettle
Fiber Reinforced Polymer (FRP) technology continues to revolutionize the process equipment landscape in chemical, water, food, pharma, and energy industries.
By combining robust material science innovation, regulatory compliance, and tailor-made manufacturing, FRP Reaction Kettle by Hebei Longxuan ensures you achieve operational safety, longevity, and total cost-of-ownership advantage.
Unlock your next process breakthrough with the technological might of FRP!
By combining robust material science innovation, regulatory compliance, and tailor-made manufacturing, FRP Reaction Kettle by Hebei Longxuan ensures you achieve operational safety, longevity, and total cost-of-ownership advantage.
Unlock your next process breakthrough with the technological might of FRP!
References & Further Reading:
• CompositesWorld FRP Market Outlook—industry-leading composites news.
• Application of FRP material in Chemical Equipment, ResearchGate.
• Comparative Review of FRP for Process Vessels - MDPI.
• CompositesCentral - FRP in chemical storage discussion.
• FRP Reaction Kettle - Product Details (Longxuan).
• CompositesWorld FRP Market Outlook—industry-leading composites news.
• Application of FRP material in Chemical Equipment, ResearchGate.
• Comparative Review of FRP for Process Vessels - MDPI.
• CompositesCentral - FRP in chemical storage discussion.
• FRP Reaction Kettle - Product Details (Longxuan).
