FRP Grating Equipment
Production Line Configurations

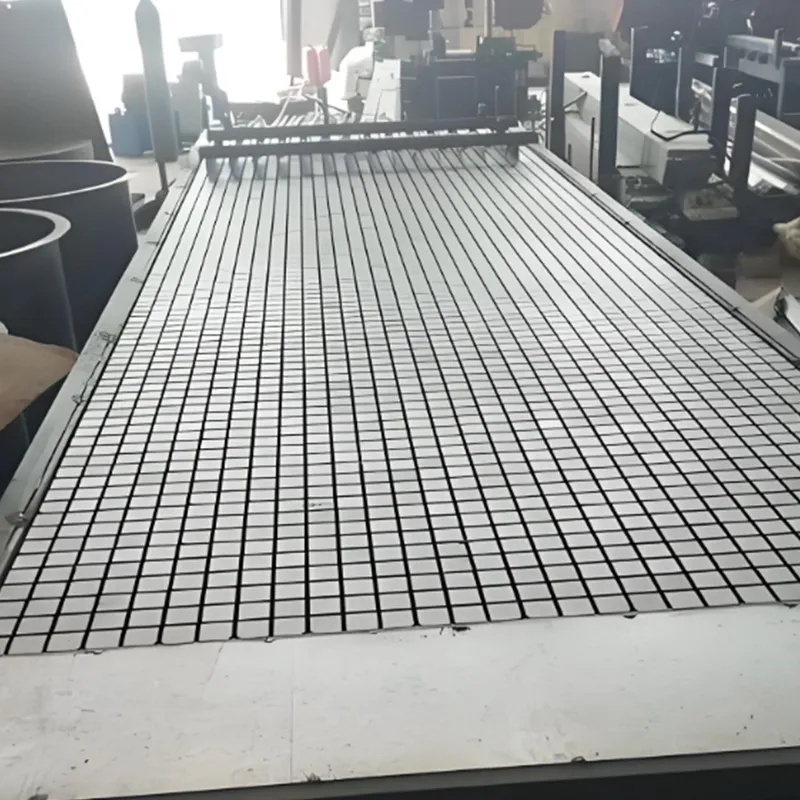

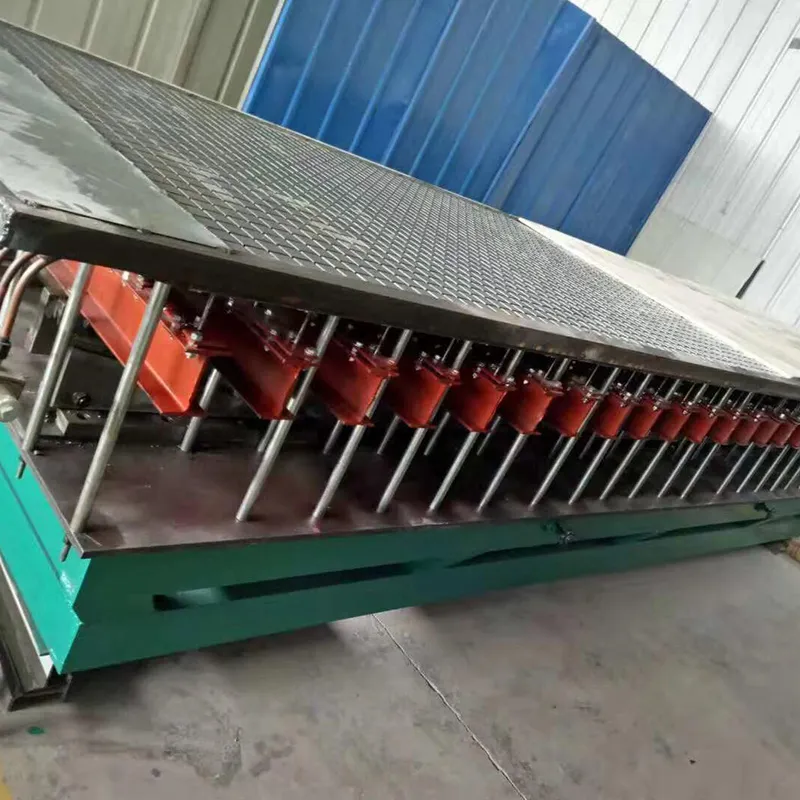

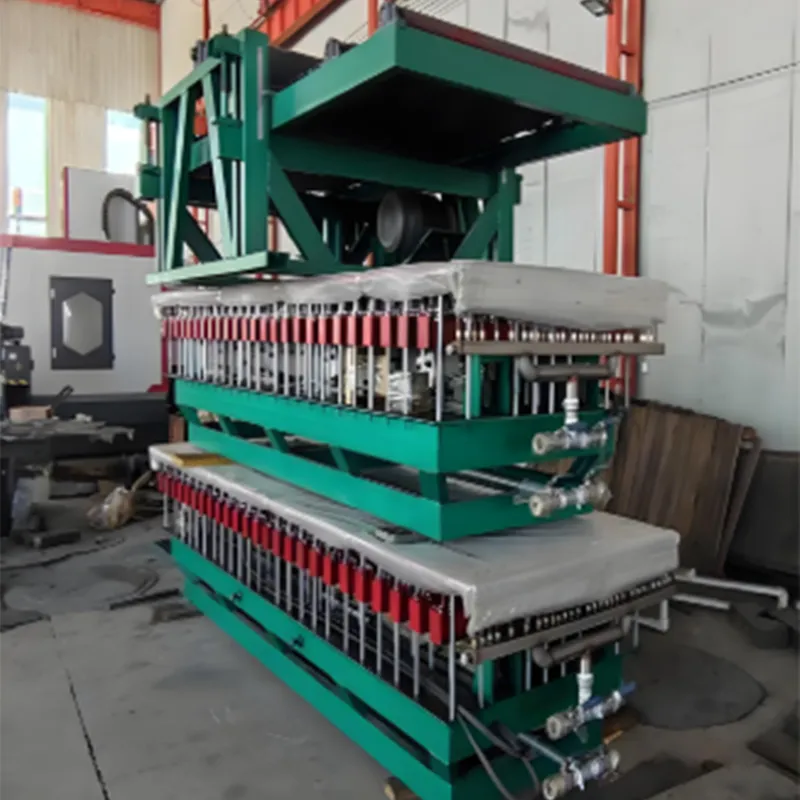

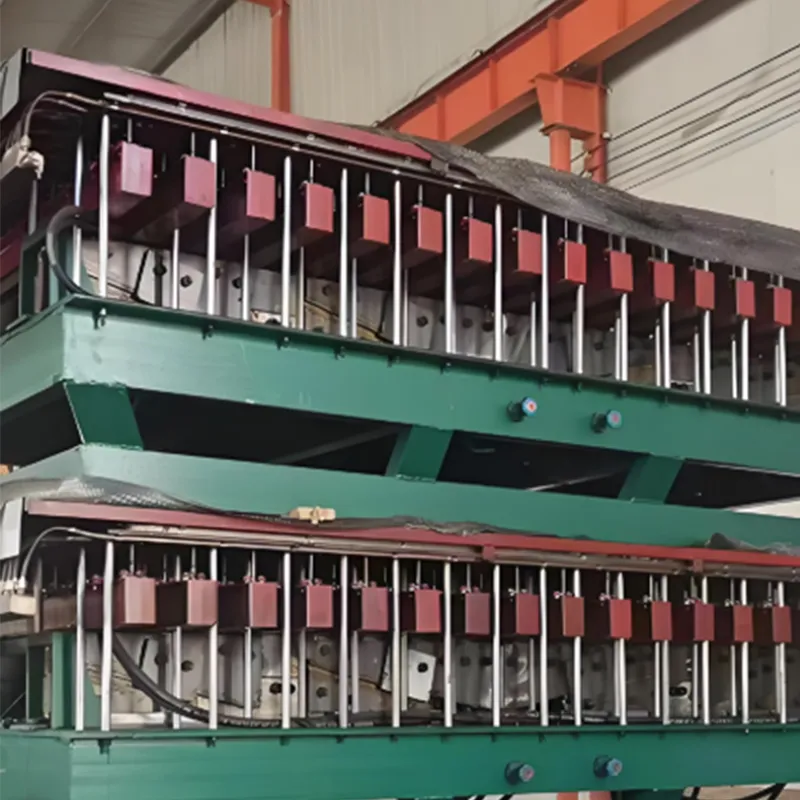

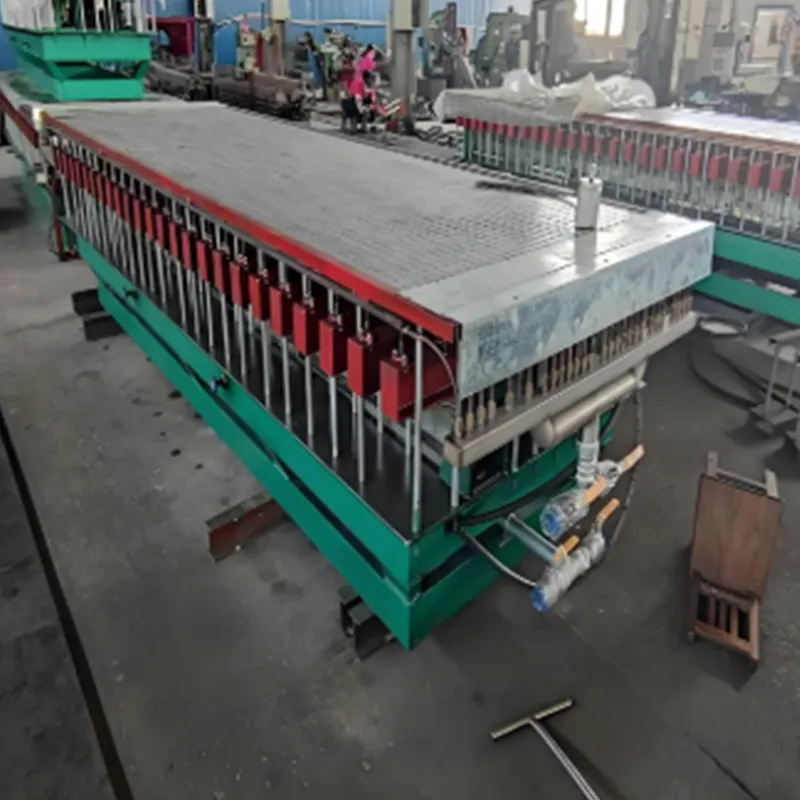

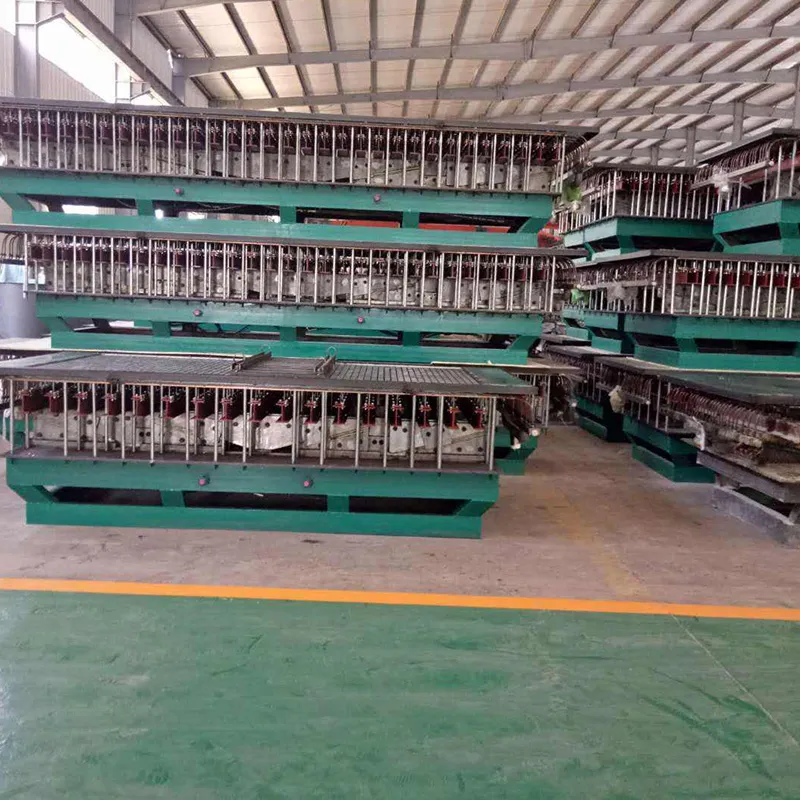

1. Molded Grating Production Line
Molding Press: 300-2000T hydraulic press with heated molds (max. 2.5×6m panel size)
Resin Injection: Vacuum-assisted resin transfer molding (VARTM) for ≤1% void content

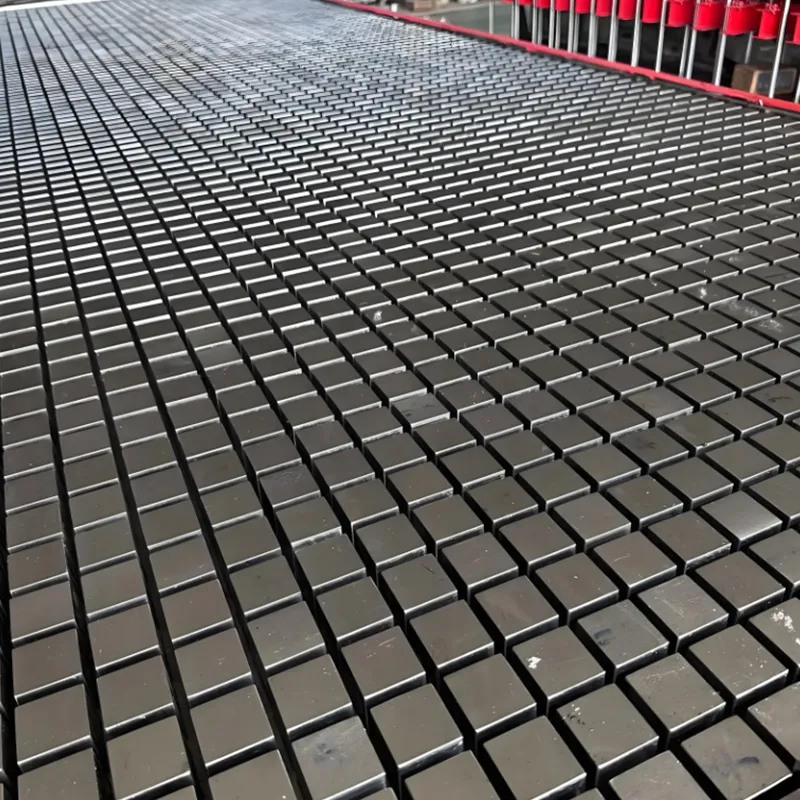

Surface Texture: Diamond/pebble/grit top patterns (Ra 3.2-12.5μm)
2. Pultruded Grating Line
Continuous Pultrusion: Produces grating bars at 0.5-2m/min (standard widths: 25/38/50mm)
Automatic Assembly: Robotic cross-rod insertion with ultrasonic welding
Technical Specifications
|
Parameter |
Molded Grating Line |
Pultruded Grating Line |
|
Panel Size |
1×3m to 2.5×6m |
Custom length (max. 8m) |
|
Bar Spacing |
19×19/38×38/50×50mm |
15-60mm (adjustable) |
|
Load Capacity |
ANSI/NAAMM MBG-531 Class I |
EN 15644 Type A-D |
|
Resin System |
Isophthalic/Vinyl Ester |
Polyurethane/Epoxy |
|
Production Rate |
20-40 panels/shift |
100-300m²/shift |
Key Features
✔ Dual-Cure System: UV pre-curing + thermal post-curing for optimal mechanical properties
✔ Color Integration: On-line pigment injection (RAL/ Pantone matching)
✔ Quality Control: Automated thickness gauging (laser scanning) and load testing
Material Advantages vs Traditional Grating
|
Property |
FRP Grating |
Steel Grating |
Aluminum Grating |
|
Weight |
25-30kg/m² |
100-120kg/m² |
50-60kg/m² |
|
Corrosion Resistance |
Excellent (pH 1-14) |
Poor (requires coating) |
Moderate |
|
Dielectric Strength |
10-15kV/mm |
Conductive |
Conductive |
|
Service Life |
20+ years |
8-12 years |
10-15 years |
Automation & Smart Manufacturing
Automatic Mold Release: Pneumatic ejection system with anti-stick coating
Energy Recovery: 30% energy reduction via closed-loop heating system
IoT Connectivity: OEE monitoring with predictive maintenance alerts
Certifications: ISO 9001, OSHA 1910.23 compliant, EN 15644
Target Applications
◼ Oil & Gas: Offshore platforms, refinery walkways (API RP 2L compliant)
◼ Chemical Plants: Acid storage areas, electrolysis cells
◼ Water Treatment: Sludge dewatering platforms, filter bed covers
◼ Transportation: Aircraft dock grating, marine vessel flooring
Delivery Time: 60 days for standard lines, 90 days for customized systems
