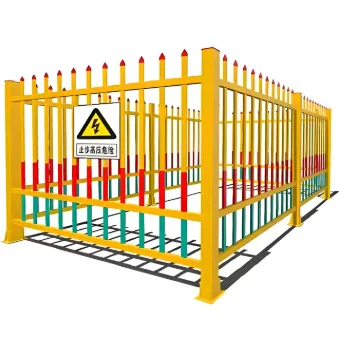

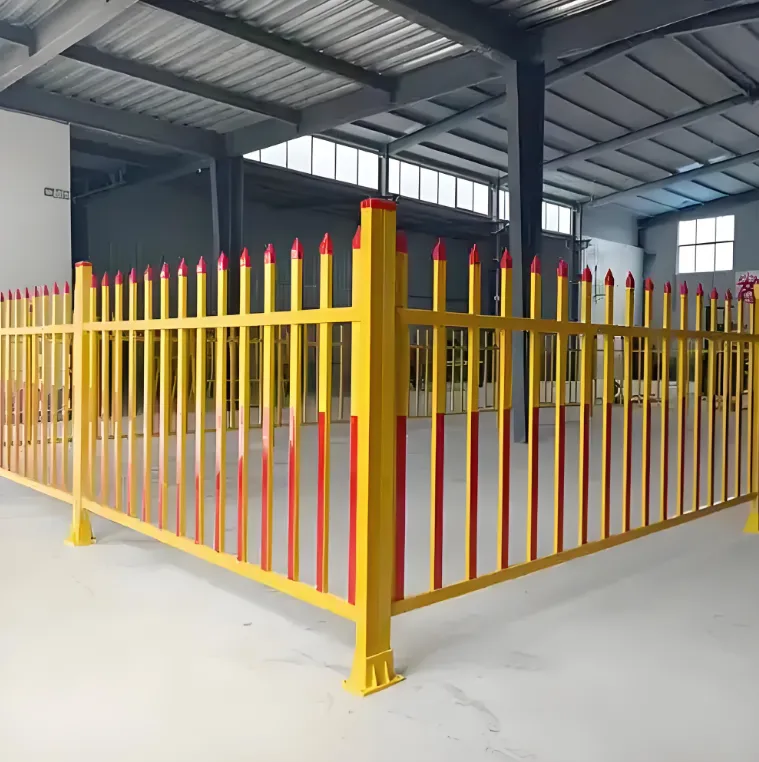

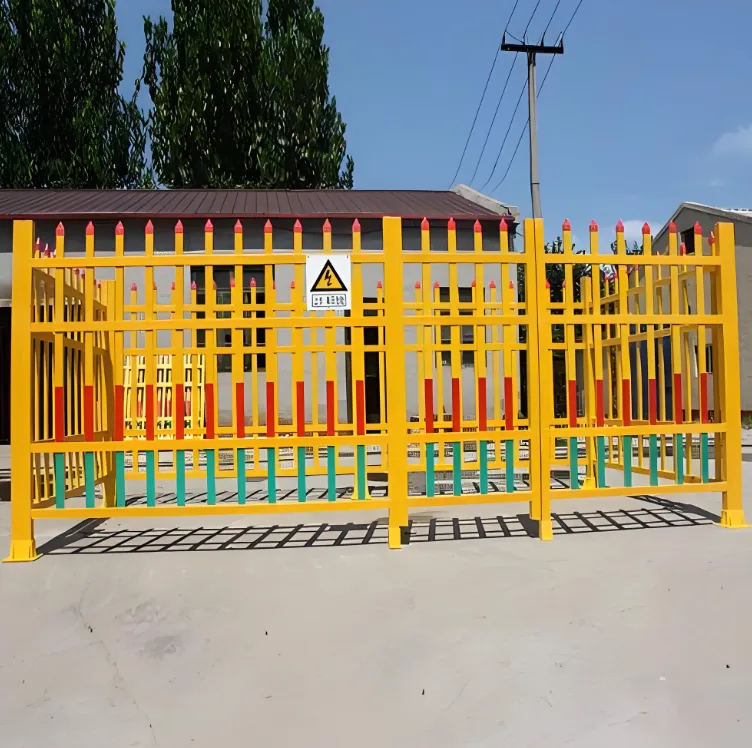

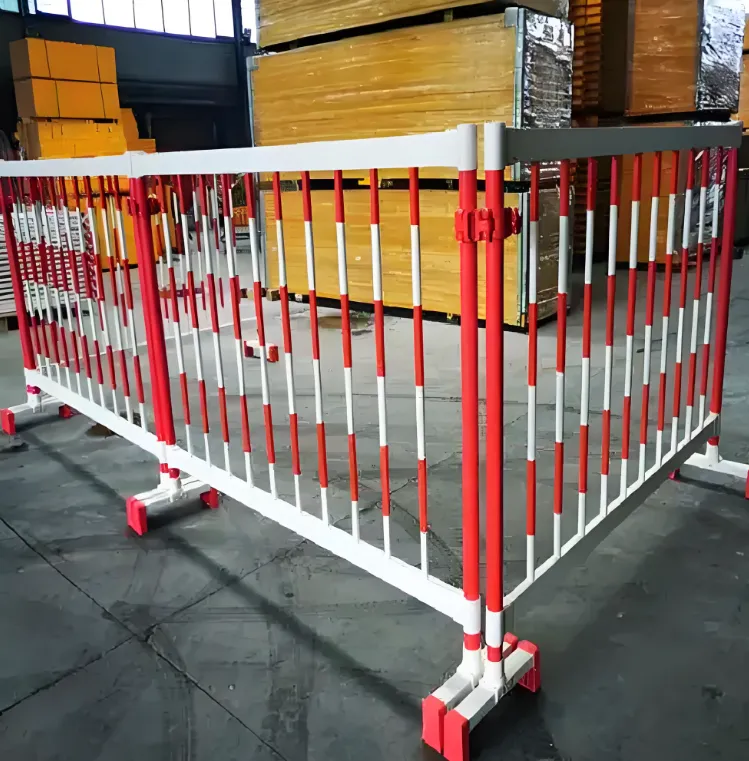

FRP Protective Fence
1.Keywords
FRP Handrail System, Corrosion-Resistant Guardrail, Industrial Fall Protection Barrier, Chemical Plant Walkway Rail, Non-Conductive Safety Rail, Offshore Platform Guardrail, UV-Resistant Barrier, Modular FRP Railing, OSHA-Compliant Safety Fence
2.Technical Specifications
1. System Components
|
Component |
Material |
Key Features |
|
Top Rail |
FRP Pultruded Profile (50×50mm) |
- Smooth rounded edges |
|
Mid Rail |
FRP Round Tube (Ø42mm) |
- Optional anti-slip texture |
|
Posts |
FRP Square Tube (80×80mm) |
- Wall/floor mounted |
|
Kick Plate |
FRP Grating or Solid Panel |
- 100mm height |
|
Connectors |
316SS or FRP |
- Boltless clamp system |
2. Standard Dimensions
|
Parameter |
Specification |
|
Height |
900mm / 1100mm / 1500mm |
|
Post Spacing |
1200mm (Standard), 1500mm (Long Span) |
|
Load Capacity |
Horizontal: 1kN/m, Vertical: 0.5kN/m |
|
Color Options |
Yellow (Standard), Red (Danger), Green (Safe) |
3. Material Properties
|
Property |
FRP Value |
vs Steel |
|
Tensile Strength |
300-500 MPa |
Comparable |
|
Peso |
1.8 g/cm³ |
1/4 Weight |
|
Dielectric Strength |
15-25 kV/mm |
Non-Conductive |
|
Thermal Expansion |
6×10⁻⁶/°C |
1/2 Aluminum |
3.Key Advantages
1. Extreme Durability
Corrosion Resistance:
|
Exposure |
Performance |
|
10% HCl |
No degradation after 5 years |
|
Salt Spray |
20,000hrs no blistering |
|
UV Radiation |
<5% gloss loss after 10 years |
2. Safety Compliance
Fall Protection:
Meets OSHA 1910.23 (1m height, 200mm toe board)
EN ISO 14122 compliant (1100mm mid-rail height)
Impact Resistance:
Withstands 50J impact (ASTM D256)
3. Easy Installation
Modular Design:
|
Length |
Assembly Time |
|
10m |
2 hours |
|
50m |
1 day |
Mounting Options:
Concrete-embedded base
Flange-mounted to steel structures
Wall-mounted brackets
4.Industry Applications
A. Chemical Plants
Acid Storage Areas:
|
Feature |
Benefit |
|
HF Resistance |
No corrosion in fluorine zones |
|
Spark-Free |
Safe in ATEX areas |
B. Offshore Platforms
Marine Grade:
UV-stabilized resin (20+ years at sea)
316SS hardware for saltwater resistance

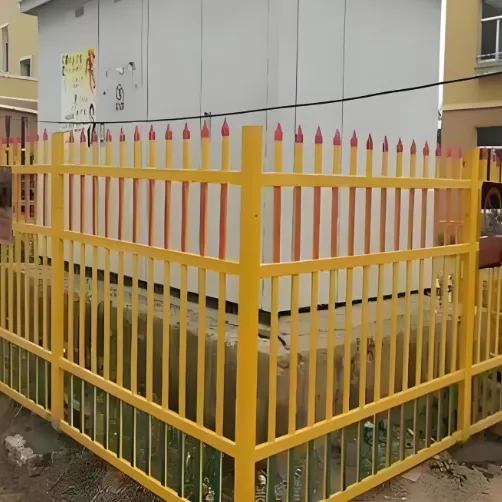

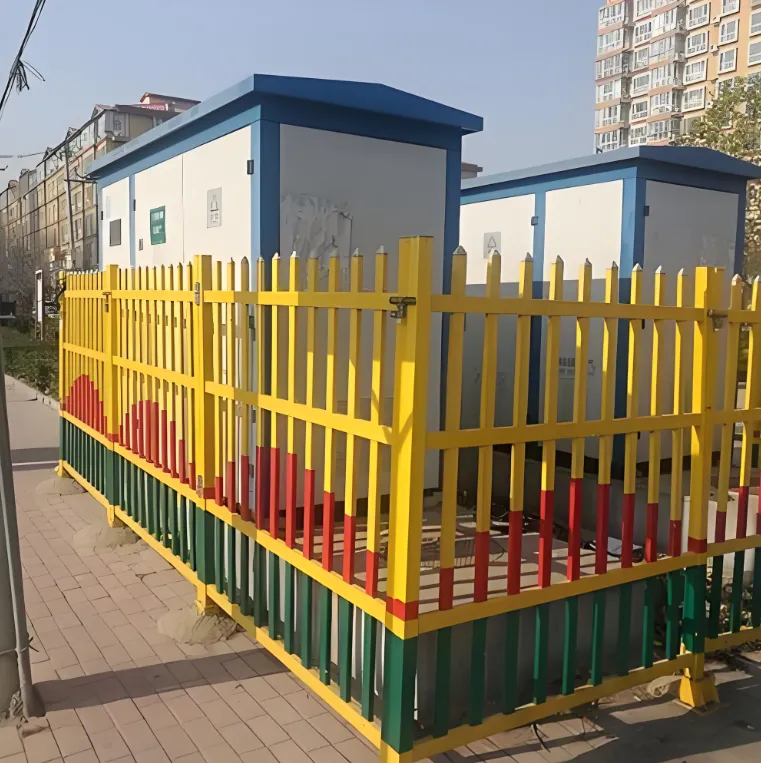

C. Power Stations
Non-Conductive:
Safe near high-voltage equipment (≥110kV)
No induced currents

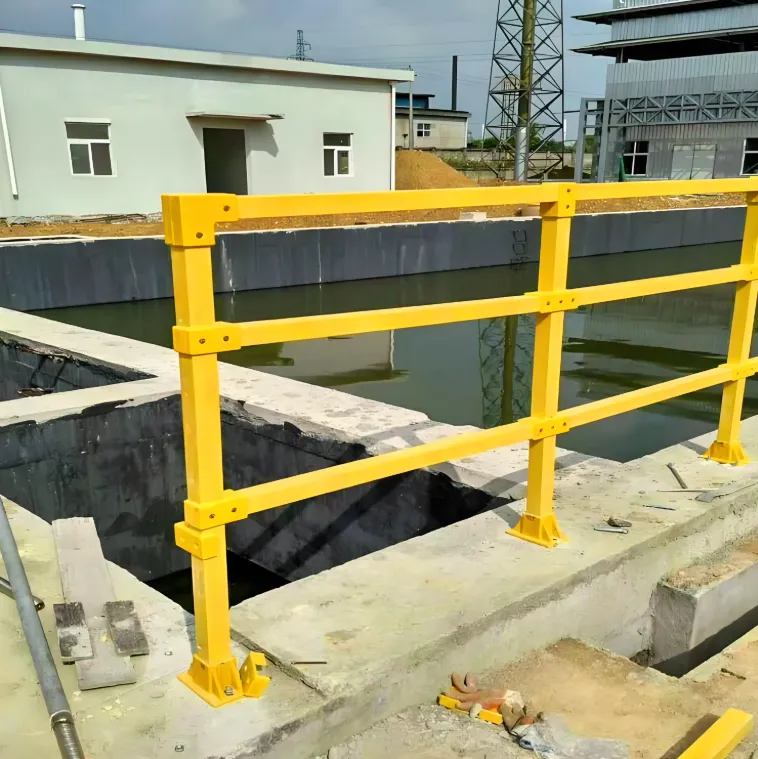

D. Water Treatment
Washdown Ready:
Resists chlorine/ozone disinfectants
Smooth surfaces prevent biofilm growth
5.Customization Options
1. Functional Upgrades
Lighting: Integrated LED strips (24V DC)
Smart Sensors: Vibration monitoring for impact detection
Heated Rails: For icy conditions (-30°C operation)
2. Special Designs
|
Type |
Application |
|
Curved Rails |
For circular platforms |
|
Foldable Gates |
Emergency access points |
|
Perforated Panels |
Wind load reduction |
3. Color Coding
Safety Standards:
|
Color |
Meaning |
Common Use |
|
Yellow |
Caution |
General areas |
|
Red |
Danger |
High-voltage zones |
|
Green |
Safe |
Emergency exits |
6.Quality Assurance
Testing:
|
Test |
Standard |
|
Load Test |
1.5× design load (EN 1991) |
|
Slip Test |
DIN 51130 R10 |
Certifications:
ISO 9001
CE Marking (EN 1090)
7.Contact for
CAD drawings (DWG/STEP)
Wind load calculations
Custom height/span configurations
