1.Product Overview

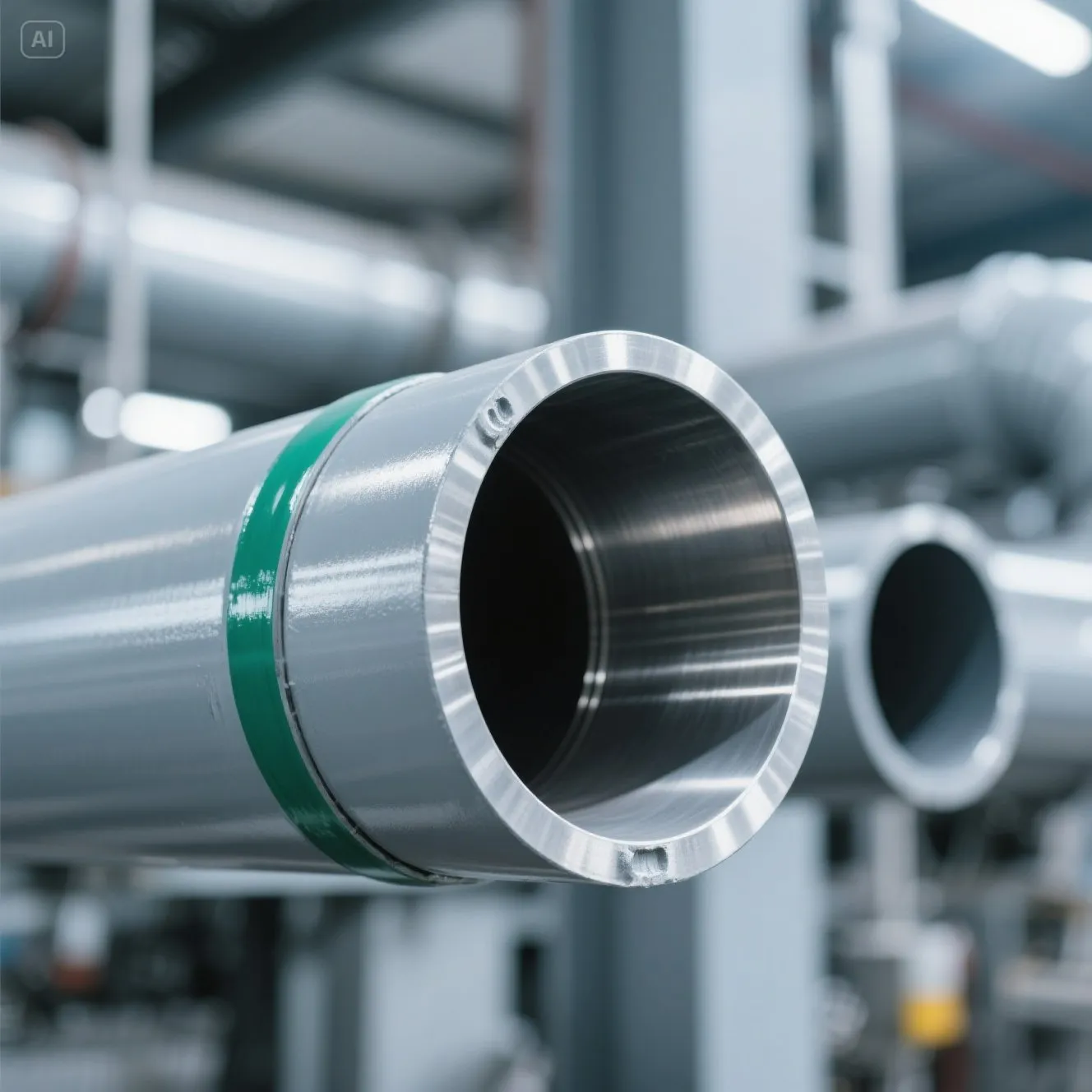

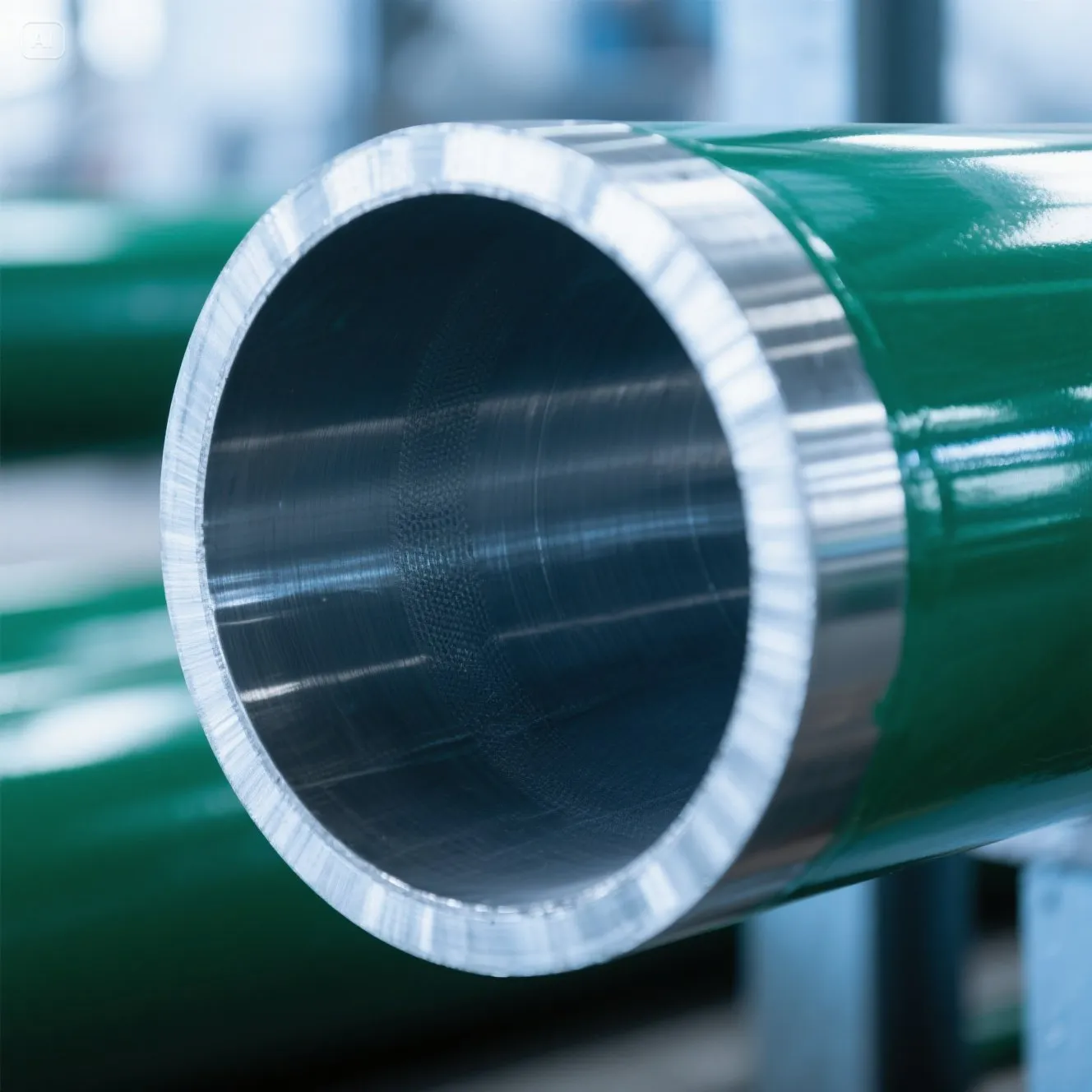

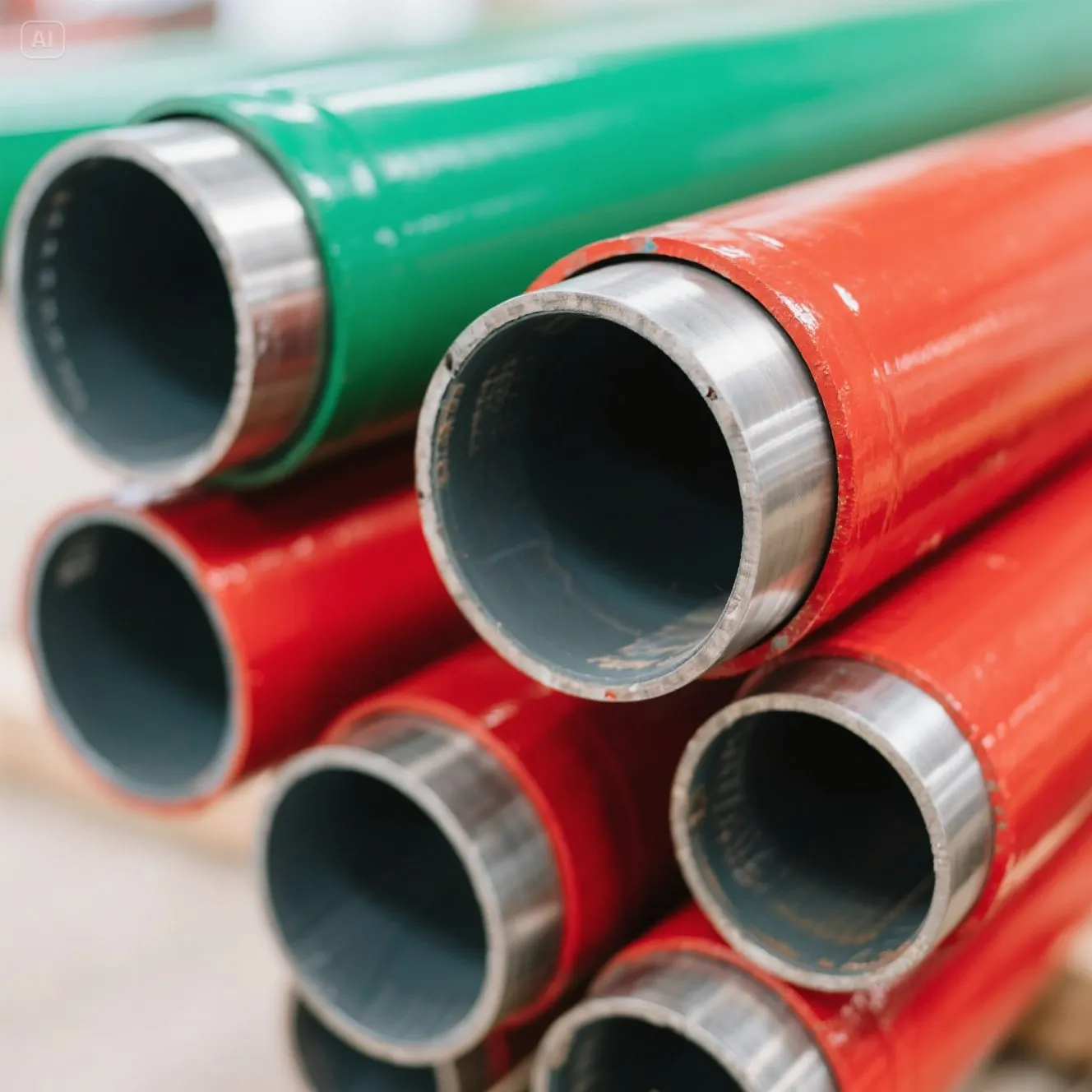

Stainless steel pipes (SS pipes) are high-performance tubular products made from corrosion-resistant steel alloys. They are widely used in industries requiring durability, hygiene, and resistance to extreme environments.

Key Features:

✔ Corrosion Resistance – Excellent performance in acidic, alkaline, and chloride-rich environments

✔ High Strength – Withstands high pressure and mechanical stress

✔ Hygienic & Easy to Clean – Ideal for food, pharmaceutical, and medical applications

✔ Temperature Resistance – Suitable for cryogenic to high-temperature applications

✔ Aesthetic Appeal – Polished finishes available for architectural use

2. Material Grades & Standards

Grade	Equivalent (EN/AISI)	Key Properties	Common Applications
304	1.4301 (EN) / AISI 304	Excellent formability, weldability	Food processing, chemical tanks
304L	1.4307 / AISI 304L	Low carbon, better weldability	Petrochemical, pharmaceuticals
316	1.4401 / AISI 316	Superior chloride resistance	Marine, coastal, medical
316L	1.4404 / AISI 316L	Low carbon, high corrosion resistance	Offshore, desalination plants
321	1.4541 / AISI 321	Titanium-stabilized, heat-resistant	High-temperature exhaust systems
Duplex 2205	1.4462	High strength, chloride resistance	Oil & gas, chemical processing

Standards Compliance:

ASTM A312/A358/A269 (Seamless & Welded)

EN 10216-5 / DIN 17456 (European Standards)

JIS G3459 / GB/T 12771 (Asian Standards)

3. Manufacturing Processes

(1) Seamless Stainless Steel Pipes

Process: Hot extrusion or cold drawing

Advantages: No weld seams, higher pressure resistance

Applications: High-pressure fluid transport, oil & gas

(2) Welded Stainless Steel Pipes

Process: ERW (Electric Resistance Welding), TIG (Argon Arc Welding), Laser Welding

Advantages: Cost-effective, available in large diameters

Applications: Structural, architectural, low-pressure systems

4. Technical Specifications

Parameter	Specifications
Outer Diameter (OD)	6mm – 2000mm (customizable)
Wall Thickness	0.5mm – 50mm
Length	1m – 12m (standard), custom lengths available
Surface Finish	Annealed, Pickled, Polished (180#-1000#), Brushed, Bead Blasted
Pressure Rating	Up to 1000+ PSI (varies by grade & thickness)
Temperature Range	-200°C to +900°C (grade-dependent)

5. Applications by Industry

✔ Oil & Gas – Downhole tubing, pipelines, refinery equipment

✔ Chemical Processing – Acid storage, heat exchangers

✔ Food & Beverage – Sanitary tubing, dairy processing

✔ Pharmaceutical – CIP/SIP systems, bioreactors

✔ Architecture – Handrails, structural supports, decorative facades

✔ Automotive – Exhaust systems, fuel lines

✔ Water Treatment – Desalination, wastewater management

6. Advantages vs. Alternative Pipes

Feature	Stainless Steel	Carbon Steel	PVC	Copper
Corrosion Resistance	★★★★★	★★☆	★★★☆	★★★★
Strength	★★★★☆	★★★★☆	★★☆	★★★☆
Hygiene	★★★★★	★★★☆	★★★★	★★★★★
Temperature Range	-200°C to +900°C	-50°C to +400°C	0°C to +60°C	-200°C to +250°C
Lifespan	50+ years	10-30 years	10-25 years	20-50 years
