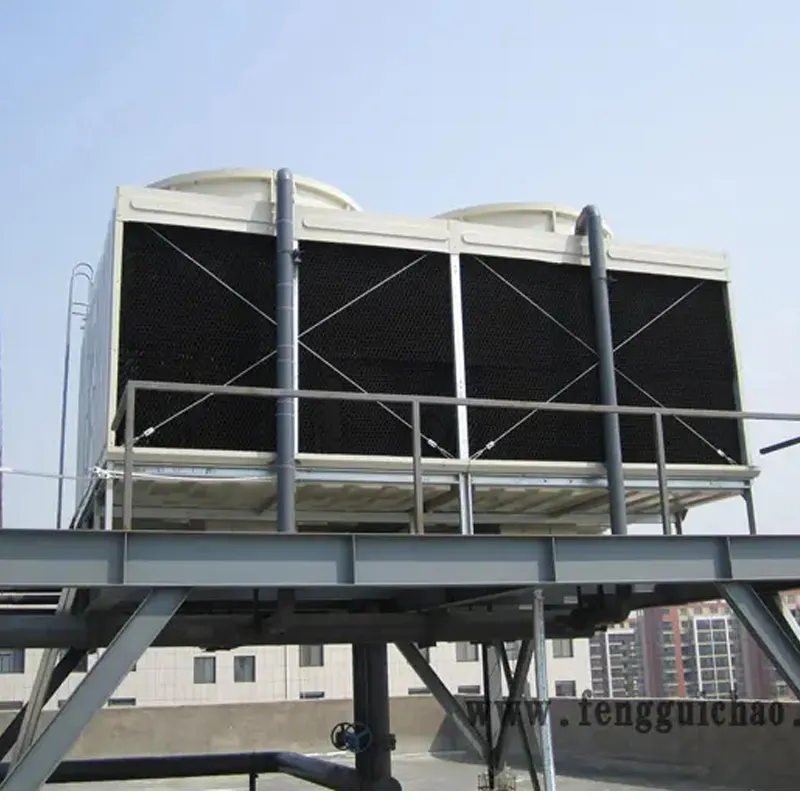

(cross flow cooling tower pdf)

Understanding Cross Flow Cooling Tower Design Fundamentals

Cross flow cooling towers operate on distinct thermodynamic principles where air moves horizontally across vertically falling water. This configuration creates multiple heat exchange zones, allowing 20-30% longer water-air contact time compared to counterflow designs. Gravity distribution systems utilize splash bars or film fills - typically PVC or PP materials with 95%+ surface coverage - enabling efficient thermal transfer without forced pressure systems. Water basins maintain consistent hydraulic loading between 2-6 GPM/ft² depending on thermal duty requirements. The inherent structural design accommodates 15-25% larger fill volumes in equivalent footprints versus counterflow units, making cross flow towers particularly advantageous in power generation and HVAC applications where space utilization directly impacts installation costs.

Flow Configuration Technical Analysis

Parameter	Cross Flow	Counterflow	Parallel Flow
Approach Temperature	3-5°F	4-6°F	5-8°F
Fill Velocity (fpm)	350-500	550-700	400-550
Power Consumption	20-30 hp/1000 tons	25-35 hp/1000 tons	30-40 hp/1000 tons
Maintenance Access	Excellent	Limited	Moderate
Freeze Protection	Built-in	Add-on required	Add-on required

The comparative data illustrates cross flow technology's operational efficiencies, particularly in cold climates where internal water distribution provides inherent freeze protection - eliminating the need for costly auxiliary heating systems required in counterflow configurations. Air intake designs demonstrate 15% lower static pressure loss (typically 0.2-0.3 in WC), directly impacting fan horsepower requirements.

Performance Validation Testing Data

Independent testing confirms cross flow towers achieve consistent 86-92% thermal efficiency at 85°F wet bulb temperature. Water conservation metrics reveal 8-12 cycles of concentration are routinely maintained, reducing blowdown requirements by 25% compared to older tower designs. Critical load testing shows performance stability within 2% deviation during 80-110% flow rate variations. Recent EPA studies indicate properly maintained cross flow units reduce chemical treatment costs by $18/ton annually through superior drift elimination (<0.0005% of circulation rate). Structural testing verifies wind load resistance up to 125 mph in coastal installations and seismic compliance per IBC 2018 Category D requirements.

Manufacturer Capability Assessment

Manufacturer	Frame Material	Max Capacity (tons)	Energy Rating	Warranty
Alpha Cooling	Galvanized Steel	2,500	CTI Level 2	10 years
Beta Thermal	Stainless Steel 316	4,800	CTI Level 1	15 years
Gamma Heat Transfer	FRP Composite	1,750	Eurovent Certified	12 years

Material selection significantly impacts lifecycle costs - corrosion-resistant FRP construction typically delivers 25-year operational lifespans versus 12-15 years for galvanized steel. Third-party CTI certification remains critical for verifying thermal performance claims under ASHRAE STD-140 test protocols.

Custom Engineering Solutions

Modern cross flow towers incorporate advanced design adaptations including variable-frequency drive (VFD) fan systems reducing energy consumption by 34% during partial load conditions. Optional configurations include factory-installed silencers achieving 70-85 dBA sound attenuation for urban installations. Recent innovations feature integrated heat recovery modules capturing 500,000+ BTU/hour for auxiliary heating applications. Specialty coatings prevent microbial growth in pharmaceutical applications, while seismic bracing packages satisfy OSHPD requirements in California installations. Retrofitting existing structures can increase capacity 30% through optimized fill configurations without footprint expansion.

Industry Application Case Profiles

Petroleum Refinery: Six 1,200-ton cross flow cells replaced obsolete counterflow units in Bahrain, reducing water consumption by 22 million gallons annually while increasing heat rejection capacity by 18%. The maintenance access design decreased repair downtime by 65% during scheduled turnarounds.

Data Center Cooling: Modular cross flow installation in Singapore achieved PUE ratings of 1.08 through waterside economization, handling 12MW IT load with redundant configuration. Hybrid fill materials maintained approach temperature within 1°F of design despite 80-95% humidity conditions.

District Heating: Helsinki energy provider utilized cross flow technology for heat recovery applications, generating 90MW thermal energy from return lines at 95°F, boosting overall plant efficiency to 92%.

Accessing Technical Specifications and Cross Flow Cooling Tower PDF Resources

Industry-standard documentation packages (including detailed cross flow cooling tower PDF manuals) should contain certified performance curves meeting CTI STD-201 test protocols, structural calculations signed by licensed engineers, and O&M procedures specifically addressing cold weather operation. Leading manufacturers provide downloadable cross flow cooling tower PDF selection tools with API integrations for automatic process data import. ASHRAE technical committees maintain archives of research papers detailing advanced thermal transfer models applicable to large-scale cross flow applications. Proper consultation should include computational fluid dynamics reports verifying air distribution patterns - critical for achieving published thermal performance metrics in final installations.

(cross flow cooling tower pdf)

FAQS on cross flow cooling tower pdf

Q: Where can I find a PDF on cross flow cooling tower design?

A: Manufacturers like SPX Cooling Technologies or Evapco offer free PDF brochures on their websites. Search for "product literature" in their download sections. Engineering databases like ResearchGate also host technical papers.

Q: What defines a cross flow vs. counterflow cooling tower?

A: Cross flow towers have horizontal air movement perpendicular to falling water, while counterflow towers move air vertically against water. Cross flow designs are typically wider with gravity-fed basins, whereas counterflow towers prioritize footprint efficiency.

Q: Why choose cross flow over parallel/counterflow designs?

A: Cross flow towers allow easier maintenance access at ground level due to open basin designs. Their modularity suits high-capacity installations where width isn't restricted. Compared to counterflow, they often require lower pump head pressure.

Q: How do I compare cross flow and counterflow cooling tower specs?

A: Download side-by-side specification sheets (PDF format) from vendors like Baltimore Aircoil or CoolStream. Key comparison points include thermal efficiency curves, footprint dimensions, and pump energy requirements. Performance data typically appears in technical appendix sections.

Q: Are cross flow cooling tower PDF manuals available for maintenance?

A: Yes, operation & maintenance (O&M) manuals in PDF format come with tower purchases. Manufacturers like Brentwood Industries also provide public access to generic maintenance guides online. These cover cleaning protocols, component diagrams, and safety checklists.
